Product details:

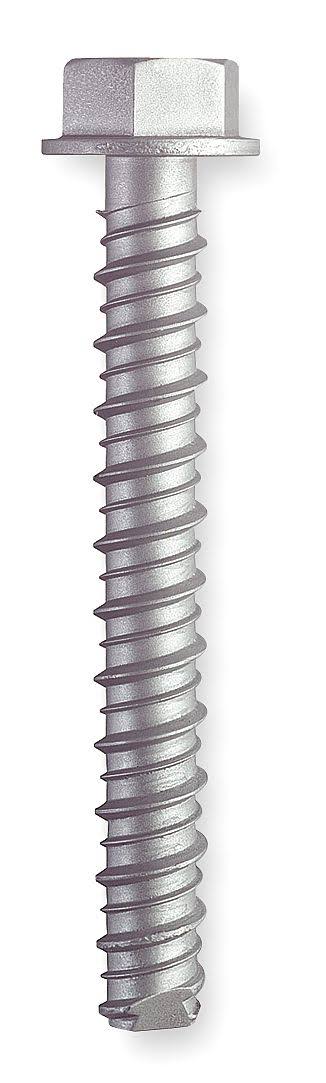

Applications the anchor is made from 410 stainless steel. This anchor is designed for use in concrete, block, and brick. Environment the anchor is designed for use in a moist environment. Head style the anchor is a hex washer serrated head and is designed to allow the head to sit on top of the surface of the item being attached. Hole diameter/bit diameter the anchor requires a 7/16in hole to be drilled in the base material concrete, block, and brick. The hole should be drilled with carbide tipped bit that meets ansi standards and used in a hammer drill. Driver required a 3/4in is required for driving the anchor into the base material. Diameter of anchor the diameter of the anchor is 1/2in. Length anchor the length of the anchor is 3in thread length the length of the threads on the anchor is in length. Minimum embedment the minimum anchor embedment into the concrete is 2in. Therefore, the anchor must be installed so that a minimum of 2in of the anchor is embedded into the concrete. Maximum fixture thickness the maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 1in. This will ensure that the minimum embedment of 2in will be met. Fixture hole diameter the hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 1/2in diameter anchor requires the hole in the fixture to be 9/16in. Spacing between anchors each anchor must be spaced a minimum distance of 8in from each other when measured center to center. Edge distance it is very important not to install the anchor any closer than 5in from an unsupported edge of the concrete.
